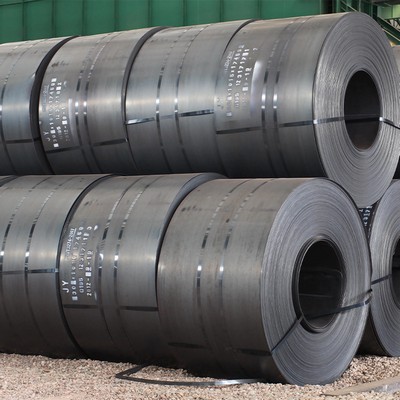

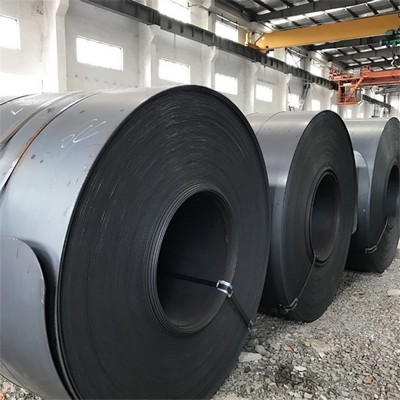

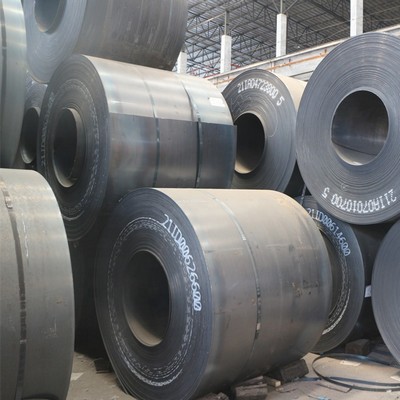

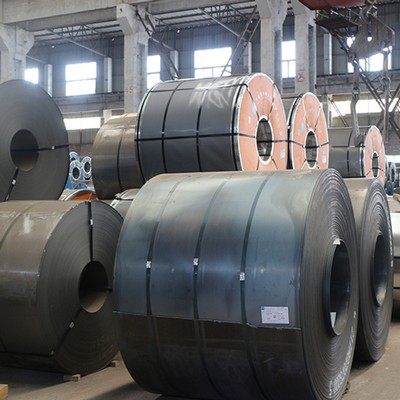

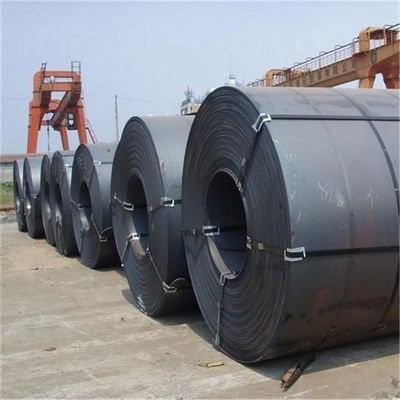

A283/Q195 Cold Rolled Steel Coil

ASTM A283 plate steel features low and intermediate tensile strength carbon steel plate of structural quality. It has four common variants, each represented as a separate material. The material properties section below shows ranges encompassing all variants.

Product Details

A283/Q195 Cold Rolled Steel Coil Details

A283 steel coil exhibits excellent work hardening properties during cold forming for its high strength and plasticity. After repeated cold working deformation, the coil can still show similar strength and hardness, with even better ductility and toughness. In addition, due to its good welding performance, the coil can be easily welded into parts of various shapes and sizes, and the welding quality is stable and reliable. A283 steel coils are widely used in the manufacturing of various mechanical parts, such as bolts, nuts, pins and other standard parts as well as various non-standard mechanical parts. In addition, they are also used in the manufacture of building structural materials.

Product parameters

Product Name

A283/Q195 Cold Rolled Steel Coil

Production Process

Hot Rolling, Cold Rolling

Material Standards

AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.

Width

45mm-2200mm

Length

Custom Size

Thickness

Hot Rolling: 2.75mm-100mm
Cold Rolling: 0.2mm-3mm

Delivery Conditions

Rolling, Annealing, Quenching, Tempered or Standard

Surface Process

Ordinary, Wire Drawing, Laminated Film



Chemical Composition

A283

C max.

Mn max.

P max.

S max.

Si (Greater1 inch, less than 1/2 inch)

Si (Greater 1/2 inch)

Cu min.

Grade A

0.14

0.90

0.035

0.04

0.40

0.15-0.40

0.20

Grade B

0.17

0.90

0.035

0.04

0.40

0.15-0.40

0.20

Grade C

0.24

0.90

0.035

0.04

0.40

0.15-0.40

0.20

Grade D

0.27

0.90

0.035

0.04

0.40

0.15-0.40

0.20



Mechanical Properties

A283

Tensile Strength

Yield Strength min.

Elongation Rate 8 inches

Elongation Rate 2 inches

Grade A

45000-60000 psi

310-415 MPa

24000 psi

165 MPa

27 % min.

30 % min.

Grade B

50000-65000 psi

345-450 MPa

27000 psi

185 MPa

25 % min.

28 % min.

Grade C

55000-75000 psi

380-515 MPa

30000 psi

205 MPa

22 % min.

25 % min.

Grade D

60000-80000 psi

415-550 MPa

33000 psi

230 MPa

20 % min.

23 % min.



Physical Performance

Physical Performance

Metric

Imperial

Density

7.80 g/cc

0.282 lb/in³
