As one of the most professional ppal manufacturers and suppliers in China, we're featured by high quality products and competitive price.

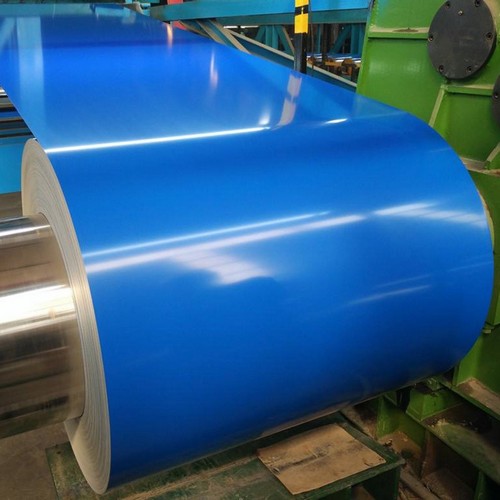

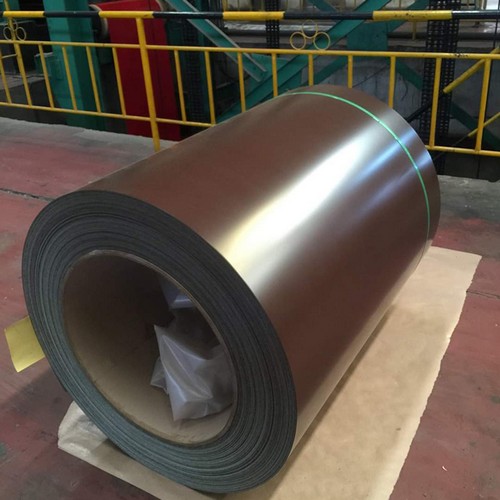

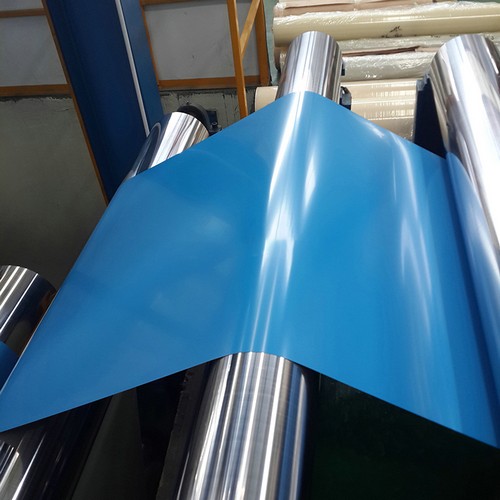

Characteristics of color aluminum plate products:

1.Superior environmental protection and energy saving effect. The recovery rate is very high (100% recyclable).
2.Beautiful appearance. Using advanced coil coating technology to achieve a variety of dazzling metallic luster and beautiful colors
3.Excellent plasticity. Aluminum has excellent ductility, easy to process, and can perfectly realize the architect's imagination.
4.Outstanding durability. Aluminum has excellent corrosion resistance and weather resistance, so the aluminum used in buildings will not degrade.
5.Outstanding practicality. Aluminum alloy has the characteristics of light weight, high strength to weight ratio, excellent fire protection and insulation characteristics, ensuring safety and efficiency, which is the ideal material for bold building design.

Process Capability (Line Specification)

Description	PPAL
Type	Continuous COLOR COATING
Line Speed	100 mpm
Thickness (MM)	0.30 TO 2.00 MM
Width (MM)	650 TO 1350 MM
Output Coil ID (MM)	508 MM
Output Coil OD (MM)	1200 MM MAX
Output Coil Weight (MT)	4 MT MAX
Type of Painting	EPOXY,RMP (REGULAR MODIFIED POLYESTER), SMP (SILICON MODIFIED POLYESTER) HDP (HIGH DURABLE POLYESTER), PVDF (Poly vinylidene Fluoride),PLASTISOL,PUPA/ARS, Anti-Bacterial, WRINKLE Finish Anti SKIDDING, Self-Cleaning/ Anti Dust.
Surface Finish	Smooth, Matt, Gloss, Textured
Type of Material	ALLOY (1100, 1060, 3003, 3104, 3004, 3105, 3005, 5052, 5005, 5182, 5754 etc.)
Temper	HO, H12, H14, H18, H22, H24, H26, H28, H32, H44, H46 etc.
Paint Coating	4-8 Microns primer + 15 TO 35 microns top Coat ( Four Coat System also available – Top & Bottom Side with Primer + Paint )

lndustries Served

Every industry has its unique set of material specifications and needs. That’s why you can count on the exceptional experience and industry knowledge of the professionals at Kuaima Steel - Meeting the Exact Needs of Every Industry That Uses steel.
