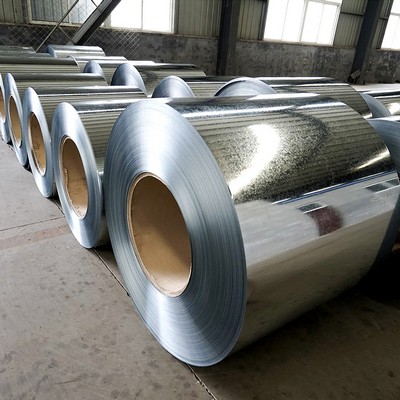

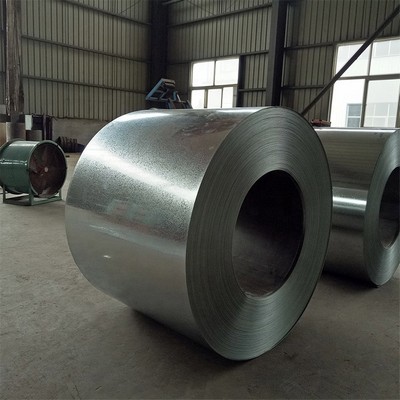

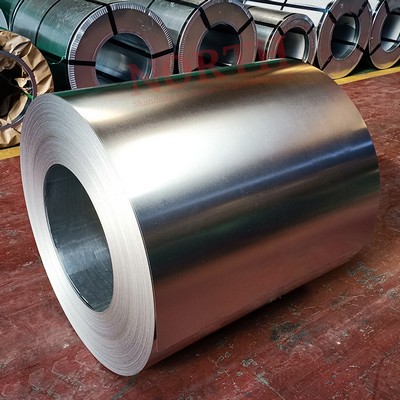

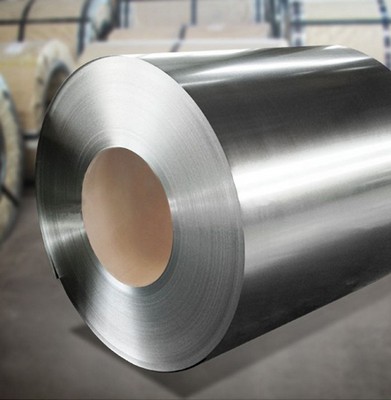

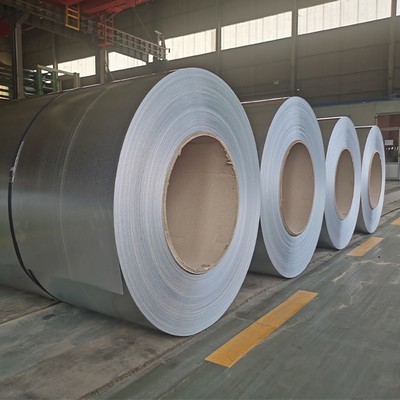

Galvanised steel is represented by cold- and hot-rolled coils with a zinc coating, which helps to protect the steel against atmospheric corrosion. Galvanised steel coils are successfully used in industries with stringent requirements for corrosion resistance, durability, strength and appearance, and can be formed or have various coatings applied. The key standards to be followed for the production of galvanised coils include EN 10346 (Europe), ASTM A653 / A653M (US), DSTU EN 10346 (Ukraine), GOST 14918−80 (Russia and the CIS) and GOST R 52246−04 (Russia). Manufacturers also have their own original standards.
Galvanised steel coils are widely used in the following industries:
1.In the construction industry: to manufacture structural elements low-rise construction, light steel thin-walled structures, sandwich panels, lining of heat pipelines and various heat insulation, conditioning systems, metal roof shingle, profiled sheeting, culvert pipes, cladding of entry doors, elevators, reinforcement profiles for PVC windows and plastic doors, 2.European-type fasteners for plasterboards, etc
3.In the automotive industry: to manufacture external and internal car body parts, as well as to repair external public transport body parts, eg for buses and trams)
4.In the machine building and instrumentation industries: to manufacture cases for electrical and mechanical equipment, home appliances, metering devices and packing
5.To manufacture houseware (tableware, bowls, buckets, tanks, baths, etc)
6.To manufacture colour-coated (and other type of coating) rolled steel
Product Name | Galvanized Steel Coil,Galvanised Steel Coil,Zinc Coated Steel Coil,GI,HDGI Galvalume Steel Coil,Aluzinc Steel Coil,Zinc Aluminum Steel Coil,GL,HDGL |
Standard | EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 |
Steel Grade | Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or As Requirement |
Type | Coil/Sheet/Plate/Strip |
Material | CGCC/SGCH/G350/G450/G550/DX51D/DX52D/DX53D |
Thickness | 0.12mm-4.0mm or 0.8mm/1.0mm/1.2mm/1.5mm/2.0mm |
Width | 600mm-1500mm or 914mm/1000mm/1200mm/1219mm/1220mm |
Zinc Coating | Z30g/m2-Z350g/m2 |
Surface Structure | Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) |
Coil Weight | 3 Tons -8Tons |
Coil ID | 508mm/610mm |
