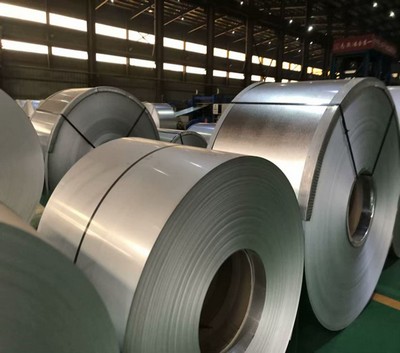

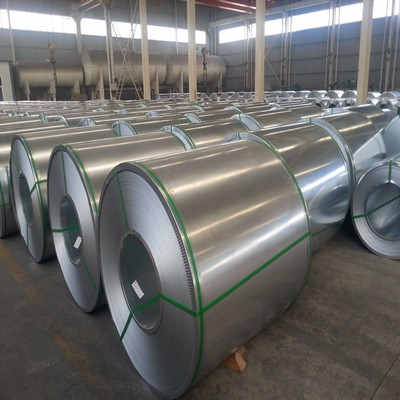

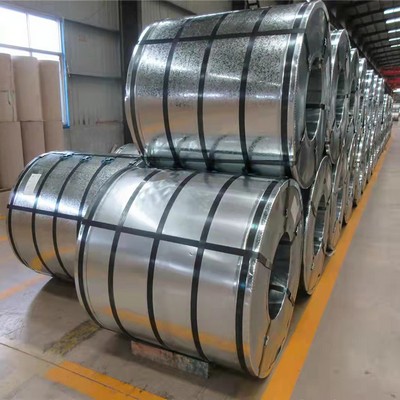

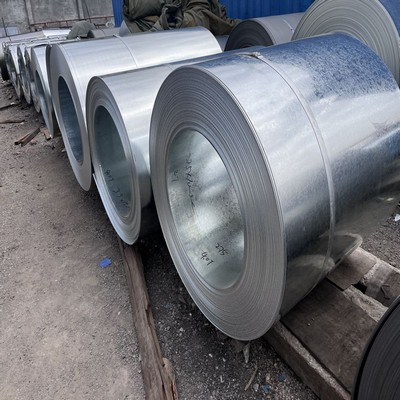

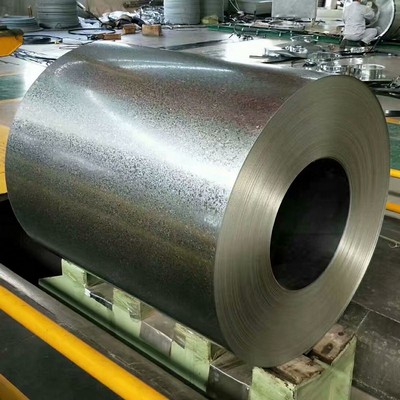

Hot dipped galvanized steel sheet & coil is made of carbon steel coated in zinc utilizing the hot-dip process. The end result of this process is a layer of zinc on each side of the steel sheet or coil that is tightly adhered to the steel through the formation of an iron-zinc alloy bonding layer.
The main advantage of galvanized steel is its corrosion resistance. The zinc coating serves as a barrier between the steel and the environment and will sacrifice itself in order to protect the underlying steel; Meaning the zinc will degrade much sooner than the steel itself. Additionally, it offers good processability and formability.
Technical Standard | EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 |
Steel Grade | Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement |
Type | Coil/Sheet/Plate/Strip |
Thickness | 0.12-6.00mm,or customer's requirement |
Width | 600mm-1500mm, according to customer's requirement |
Type of Coating | Hot Dipped Galvanized Steel(HDGI) |
Zinc Coating | 30-275g/m2 |
Surface Treatment | Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) |
Surface Structure | Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) |
Quality | Approved by SGS,ISO |
ID | 508mm/610mm |
Coil Weight | 3-20 metric ton per coil |
Package | Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement |
Export market | Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc |
