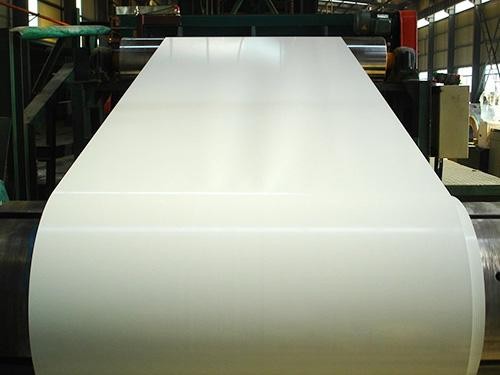

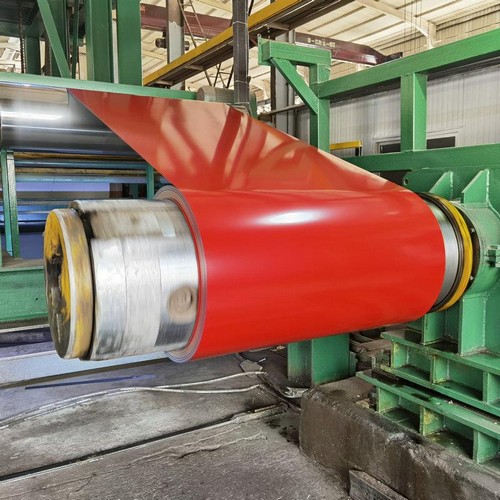

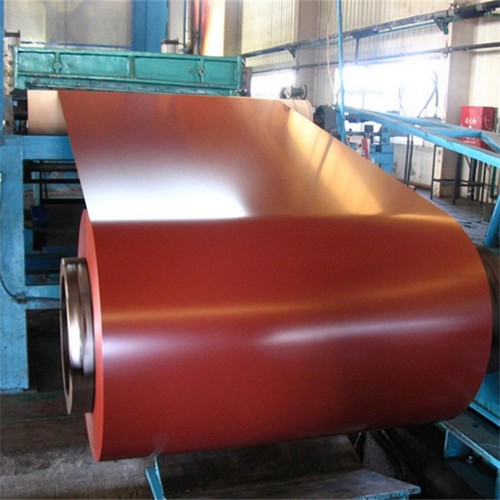

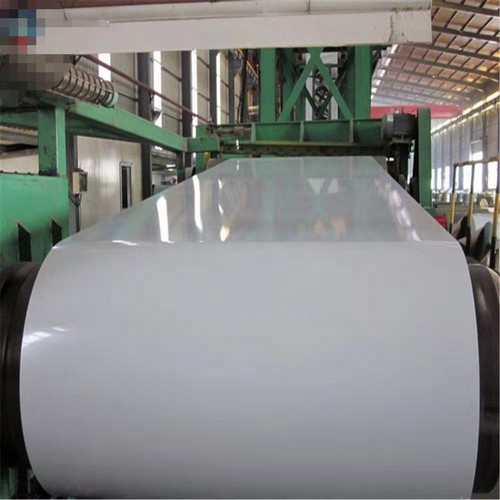

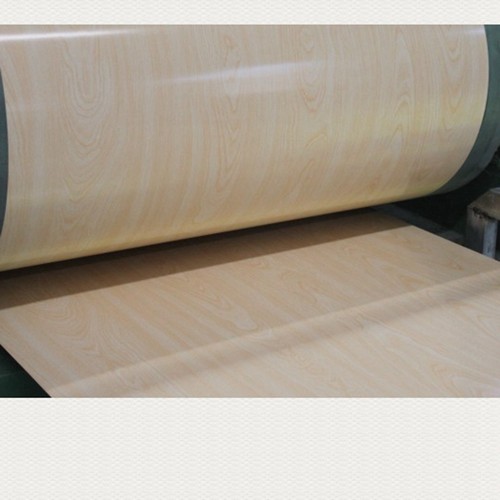

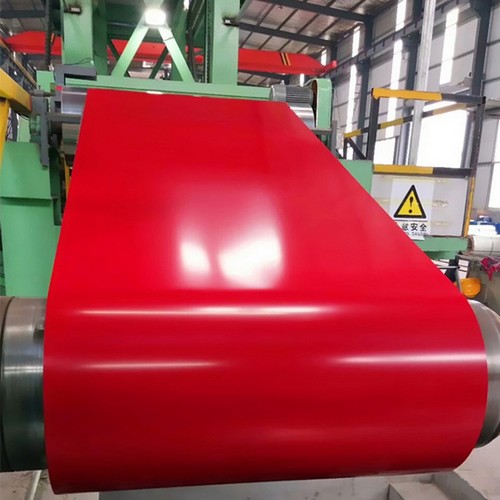

PPGI or PPGL (color-coated steel coil or prepainted steel coil) is a product made by applying one or several layers of organic coating on the surface of steel plate after chemical pretreatment such as degreasing and phosphating, and then baking and curing. Generally, hot-dip galvanized sheet or hot-dip aluminum Zinc plate and electro-galvanized plate are used as substrates.
The color of PPGI/PPGLis bright and clear, the surface is bright and clean, no damage and no burrs;
Each coating process is strictly in accordance with International standards or customer requirements to ensure product quality；
Each packaging process is strictly in accordance with International standards or customer requirements to ensure safe transportation of products.
Thickness | 0.13-1.0mm,Thickness tolerance:±0.02mm |
Width | Less than750mm-1250mm,Width tolerance:-0/+3mm |
Coil weight | 3-6MT |
Coil ID/OD | Coil ID:508±10mm ; Coil OD: 900-1200 mm |
Paint Coating | 15-25um |
Colors | refer to RAL numbers or customer sample,common colors are sea blue, white grey and bright red. |
Surface | top coating:10-25um;back coating :5-10 um |
Gloss | The gloss can changeable by Customers' Request.we can also do some High gloss, with some sparkling granule in it. |
Paint type | PE or PVDF |
Standard | GB/T 12754-2006;ASTM A 755;EN 10169;JIS G 3312;AISI;BS;DIN |
Grade | CGCC/SGCC/SGCH/SPCC |
application: | Widely used in roof, construction, door and windows, solar heater, cold room, kitchen utensils, household appliance, |
