Grade 316L, the low carbon version of 316 and is immune from sensitisation (grain boundary carbide precipitation). Thus it is extensively used in heavy gauge welded components (over about 6mm).

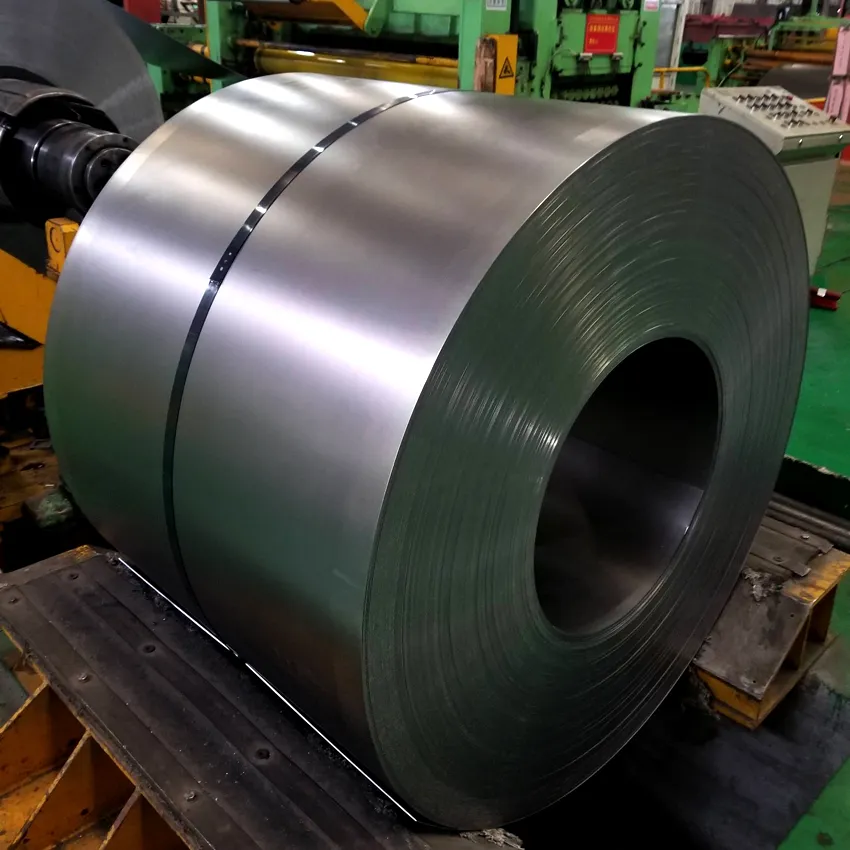

The 316 Stainless Steel Coil is a durable and reliable industrial-grade product made of high-quality stainless steel. Its galvanized surface treatment provides added resistance against corrosion and rust, making it ideal for use in harsh environments. The coil is hot-rolled using various grades of stainless steel, ensuring its rigidity and strength. It comes in different sizes to cater to all types of industrial requirements. The 316 Stainless Steel Coil is perfect for use in construction, mining, manufacturing, and other industrial applications. It comes with a 1-2 year warranty, ensuring its longevity and performance.
| Grade | ASTM S31603,316L/ JIS SUS 316 /GB S31603,022Cr17Ni12M02 |
| Available Standard | ASTM, AISI, SUS, JIS, EN, DIN, GB, ASME, etc. In general, ASTM A240/A240M or as your requirements |
| Certification | MTC from mill |
| Brand/MILL | ISCO,JISCO,PZSS,HONGWANG,BEN STEEL ,YONG MENTAL ,etc |
| Treatment | Cold Rolled |
| Thickness | 0.3mm-3mm,4mm-6mm |
| Width | ≤2000mm |
| Finish | 2B/HL/8K mirror |
| Edge | Slit edge & Mill edge |
| Standard Size | 1000mm*2000mm |
| 1219mm*2438mm | |
| 1500mm*6000mm | |
| 1800mm*6000mm | |
| 2000mm*6000mm |
316L stainless steel Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316L | Min | - | - | - | - | - | 16 | 2 | 10 | - |
| Max | 0.03 | 2 | 0.75 | 0.045 | 0.03 | 18 | 3 | 14 | 0.1 |
Mechanical Properties
Typical mechanical properties for grade 316L stainless steels
| Grade | Tensile Str (MPa) min | Yield Str 0.2% Proof (MPa) min | Elong (% in 50 mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316L | 485 | 170 | 40 | 95 | 217 |
Physical Properties
Typical physical properties for annealed grade 316L stainless steels:
| Grade | sity(kg/m3) | Elastic Modulus (GPa) | Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100 °C (J/kg.K) | Elec Resistivity (nΩ.m) | |||
| 0-100 °C | 0-315 °C | 0-538 °C | At 100 °C | At 500 °C | |||||
| 316L | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
