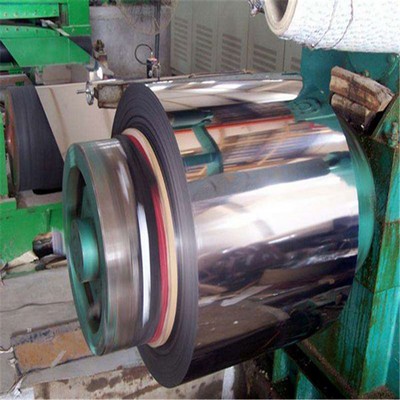

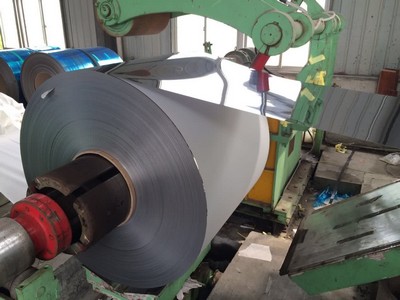

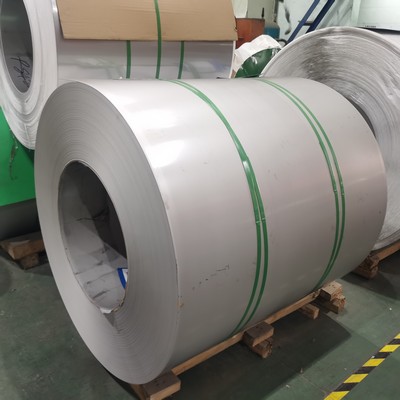

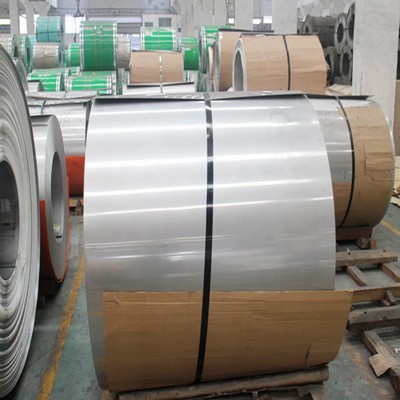

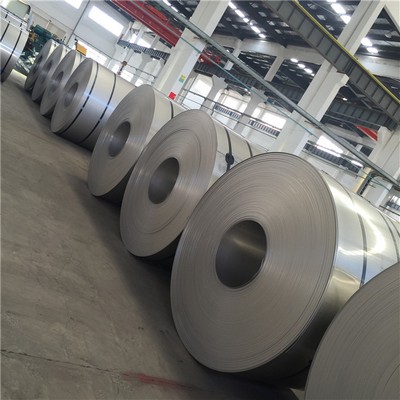

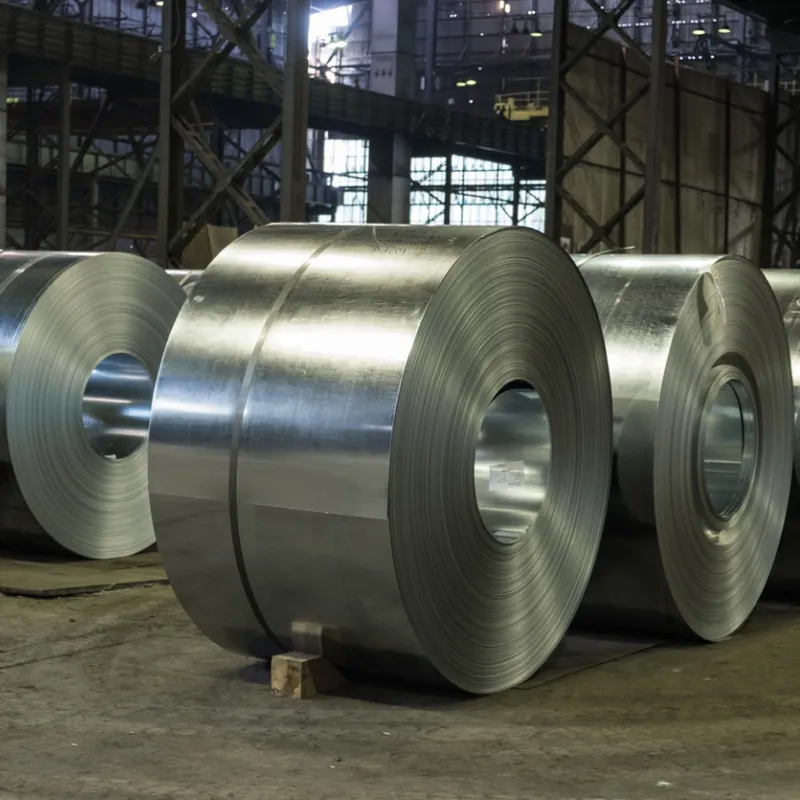

Our SS 304 coils are made of high-quality stainless steel to ensure durability and corrosion resistance. With its excellent mechanical properties, it is widely used in various industrial applications such as construction, automotive and aerospace.
304 Stainless Steel has become the most versatile and widely used stainless steel among austenitic stainless steel due to its high chromium-nickel content and low carbon content. 304 stainless steel, sometimes referred to as “18-8”, has better corrosion resistance than 301 stainless steel or 302 stainless steel, and has excellent tensile and forming characteristics. It will provide satisfactory service at high temperatures, although carbide precipitation may occur with prolonged exposure in the temperature range of 800°F-1600°F.
304L Stainless Steel is the low carbon version of 304 Stainless Steel, This low content( 0.03%) causes little difference in their performance. It helps in minimizing or eliminating the carbide precipitation, so that improve the intergranular corrosion resistance during the welding process. This made it excellent steel to be worked in both welded and severe corrosive environments.
| Grades | Stainless Steel J1, J2, J4, 201, 202, 301, 304, SS304,304H, 304L, 309, 309S, 310, 310S, 316, 316L, 316TI, 321, 321H, 347, 409, 410, 410S, 420, 430, 441, 904L |
| Thickness | 0.2mm – 5.0mm |
| Width | 3.2mm – 1500mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, AS PER CUSTOMER’S REQUIREMENT |
| Type of Material | STAINLESS STEEL SOFT, DEEP DRAW, EXTRA DEEP DRAW, QUARTER HARD, HALF HARD, FULL HARD. |
| Form | Coil / Strip |
| Test Certificate | Yes. |
| Finish | NO.1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA. |
| Make | JINDAL, BAHRU, POSCO KOREA, POSCO THAINOX, COLUMBUS, ACERINOX, APERAM, TISCO, NISSHIN, NIPPON AND MANY MORE MILLS. |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
304 | min. max. | – 0.08 | – 2.0 | – 0.75 | – 0.045 | – 0.030 | 18.0 20.0 | – | 8.0 10.5 | – 0.10 |
Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
304 | 515 | 205 | 40 | 92 | 201 |
Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
304 | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | AFNOR | ||
BS | En | No | Name | |||||
304 | S30400 | 304S31 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304 | Z7CN18‐09 |
