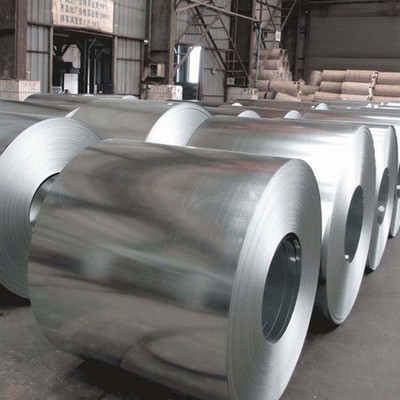

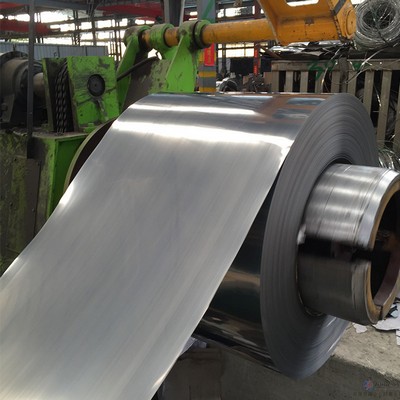

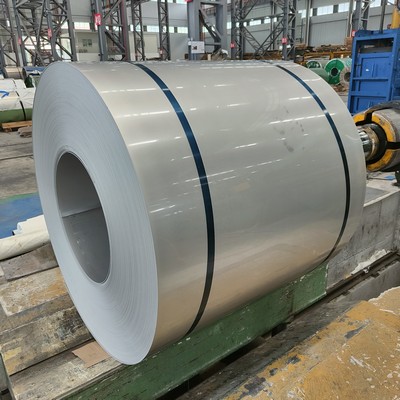

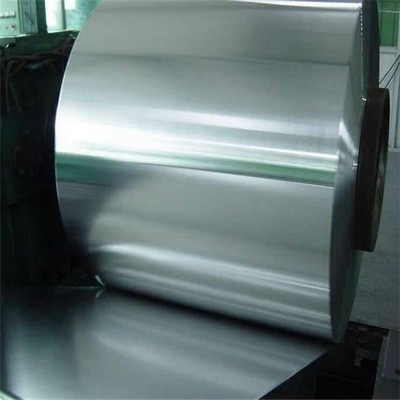

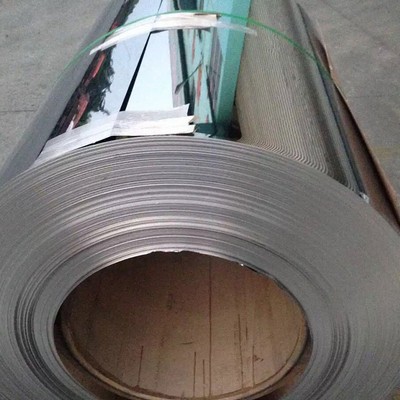

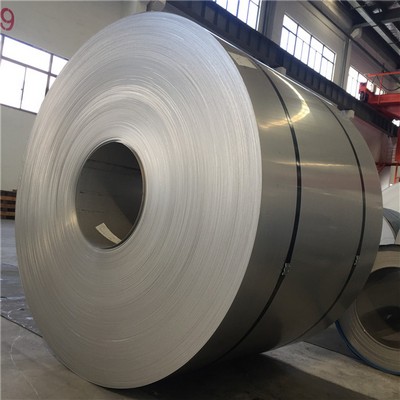

AISI 316 Stainless Steel Coils are made from an austenitic stainless steel alloy foil available in a range of 96 variations. They exhibit excellent corrosion resistance as well as good formability and weldability. These thin, flexible foil coils are well-suited for applications requiring corrosion resistance such as chemical processing equipment, food processing surfaces and medical devices. With such a range of sizes and grades to choose, from AISI 316 Stainless Steel Coils meet the needs of diverse industries and applications.
Grade 316L, the low carbon version of 316 and is immune from sensitisation (grain boundary carbide precipitation). Thus it is extensively used in heavy gauge welded components (over about 6mm). Grade 316H, with its higher carbon content has application at elevated temperatures, as does stabilised grade 316Ti.
The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures
It is the preferred steel for use in marine environments because of its greater resistance to pitting corrosion than other grades of steel. The fact that it is negligibly responsive to magnetic fields means that it can be used in applications where a non-magnetic metal is required. In addition to molybdenum, 316 also contains a number of other elements in varying concentrations. Like other grades of stainless steel, marine grade stainless steel is a relatively poor conductor of both heat and of electricity when compared to metals and other conductive materials.
Commodity | Stainless steel coil |
Grade | 201, 202, 304, 304L, 309, 309S, 310S, 316, 316L, 316Ti, 317L, 321, 347H, 409, 409L, 410, 410S, 420(420J1, 420J2), 430, 436, 439, |
Standard | JIS, AISI, ASTM, DIN, TUV,BV,SUS,etc. |
Thickness | 0.15-120mm |
Surface | ①Common:2B, 2D, HL(Hailine), BA(Bright annealed), No.4. ②Colored: Gold mirror, Sapphire mirror, Rose mirror, black mirror, bronze mirror;Gold brushed, Sapphire brushed, Rose brushed, black brushed, etc. |
Width | 1000mm, 1219mm(4 feet), 1250mm, 1500mm, 1524mm(5 feet), 1800mm, 2000mm, or as your requirements. |
Package | Water proof paper+wooden pallet+angel bar protection+steel belt or as your requirements. |
Delivery time | Usually within 7 days, upon the final quantity you demand. |
Applications | Architectural decoration, luxury, doors, elevators decorating, metal tank shell, ship building, decorated inside the train, as well as outdoor works , advertising nameplate, the ceiling and cabinets, aisle panels, screen, the tunnel project, hotels, guest houses, entertainment place, kitchen equipment, light industrial and so on. |
Chemical Composition
C | Si | Mn | Cr | Ni | S | P | Mo |
≤ 0.03 | ≤ 0.75 | ≤ 2.0 | 16.0～18.0 | 10.0～14.0 | ≤ 0.03 | ≤ 0.045 | 2.0～3.0 |
Mechanical Properties
Tensile Strength Kb (MPa) | Yield Strength σ0.2 (MPa) | Elongation D5 (%) | Hardness |
≥480 | ≥177 | ≥ 40 | ≤ 187HB;≤ 90HRB;≤ 200HV |
Physical Performance
Density(g/cm³) | Modulus of Elasticity(Gpa) | Coefficient of Thermal Expansion(10-6/°C) | Coefficient of Thermal Conductivity(W/m*K) | Resistivity(ΜΩ. cm) |
7.99 | 193 | 16.0 | 16.2 | 74 |
Surface Selection
